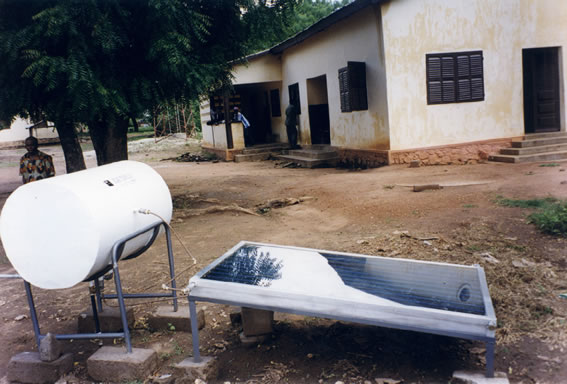

Village hospital at Moretan situated in the MONO department in Togo 200 kms distance (North-east) From Lomé. An experimental project organised by the NGO PLAN-TOGO, CATAT Industrial engineering and the departmental Health head office at Est-Mono.
Objective: to evaluate the exploitation, the technical and non technical aspects of the solar water heater in the villages hospital in a rural environment.
Flat glassed collector, TINOX absorber, simple circulation, surface 1 x 2m2
Thermal reservoir UL95-150 with 1 x 150Litres capacity

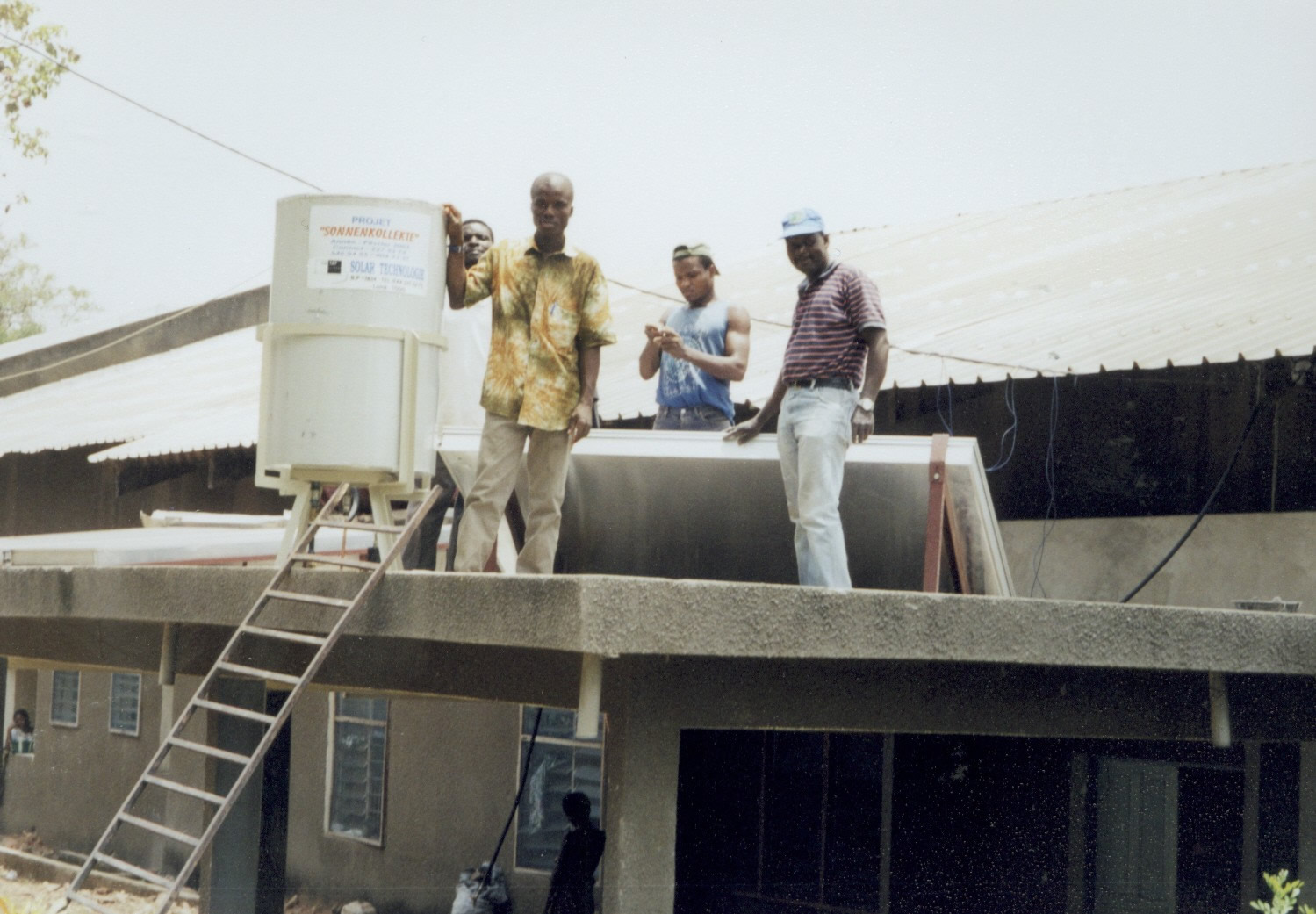

Regional Hospital -Atakpamé Togo: Project „Sonnenkollekte"
Flat glassed collector, type EURO C-18 from Wagner & Co. Surface 1x 2.34m2
Thermal reservoir UL95-150 with 1 x 150Litres capacity from CATAT Industrial Engineering

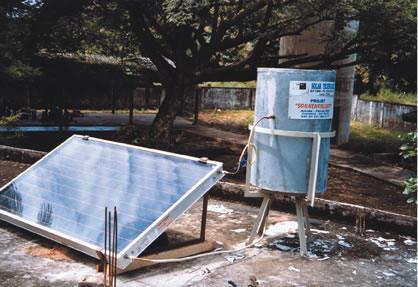

Regional hospital - Sokodé Togo: Project „Sonnenkollekte "
Flat glassed collector, type EURO C-18 from Wagner & Co. Surface 1x 2.34m2
Thermal reservoir UL95-150 with 1 x 150Litres capacity from CATAT Industrial Engineering

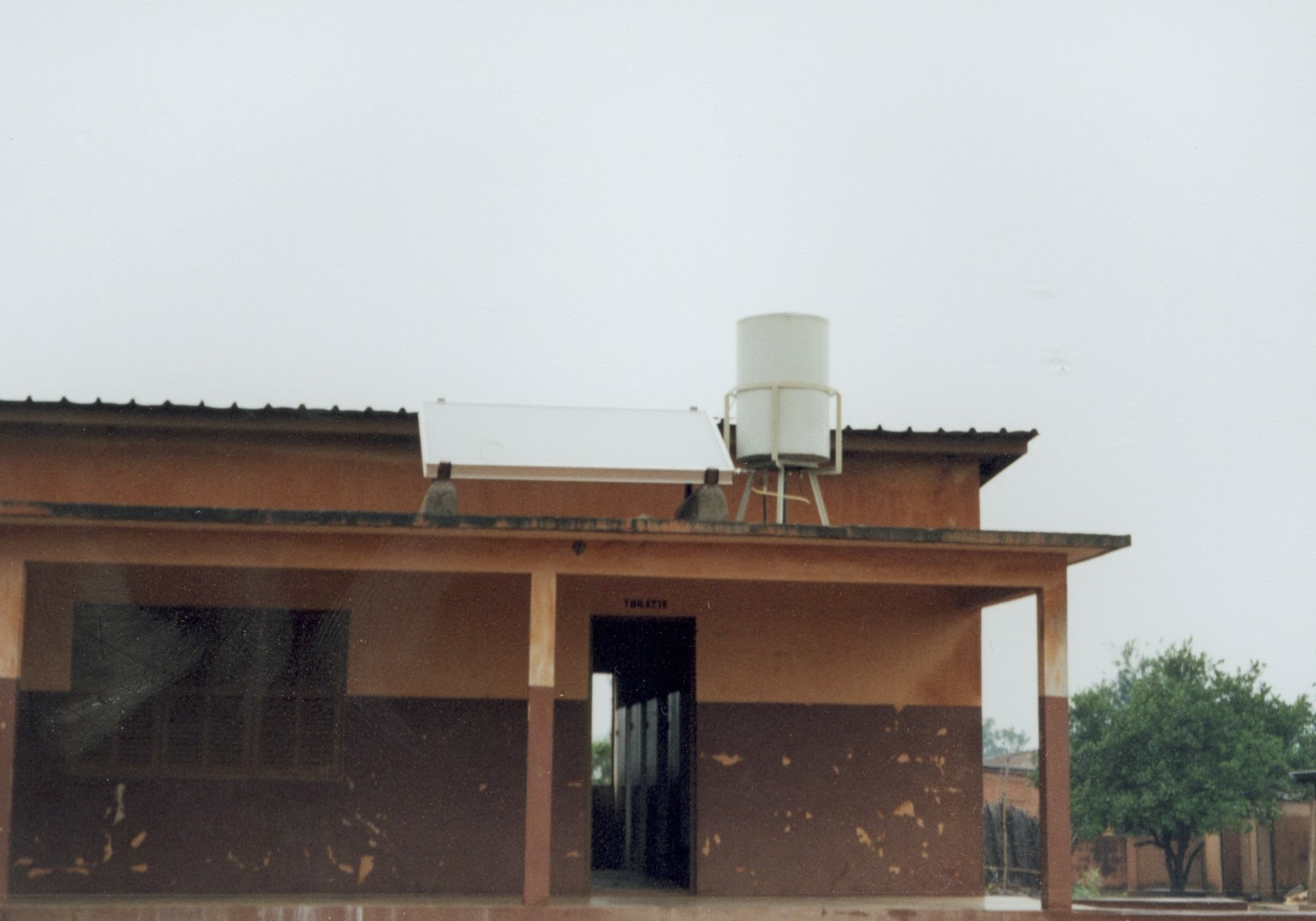

Village hospital at Aklakou Togo: Project „Sonnenkollekte "
Flat glassed collector, type EURO C-18 from Wagner & Co. Surface 1x 2.34m2
Thermal reservoir UL95-150 with 1 x 150Litres capacity from CATAT Industrial Engineering

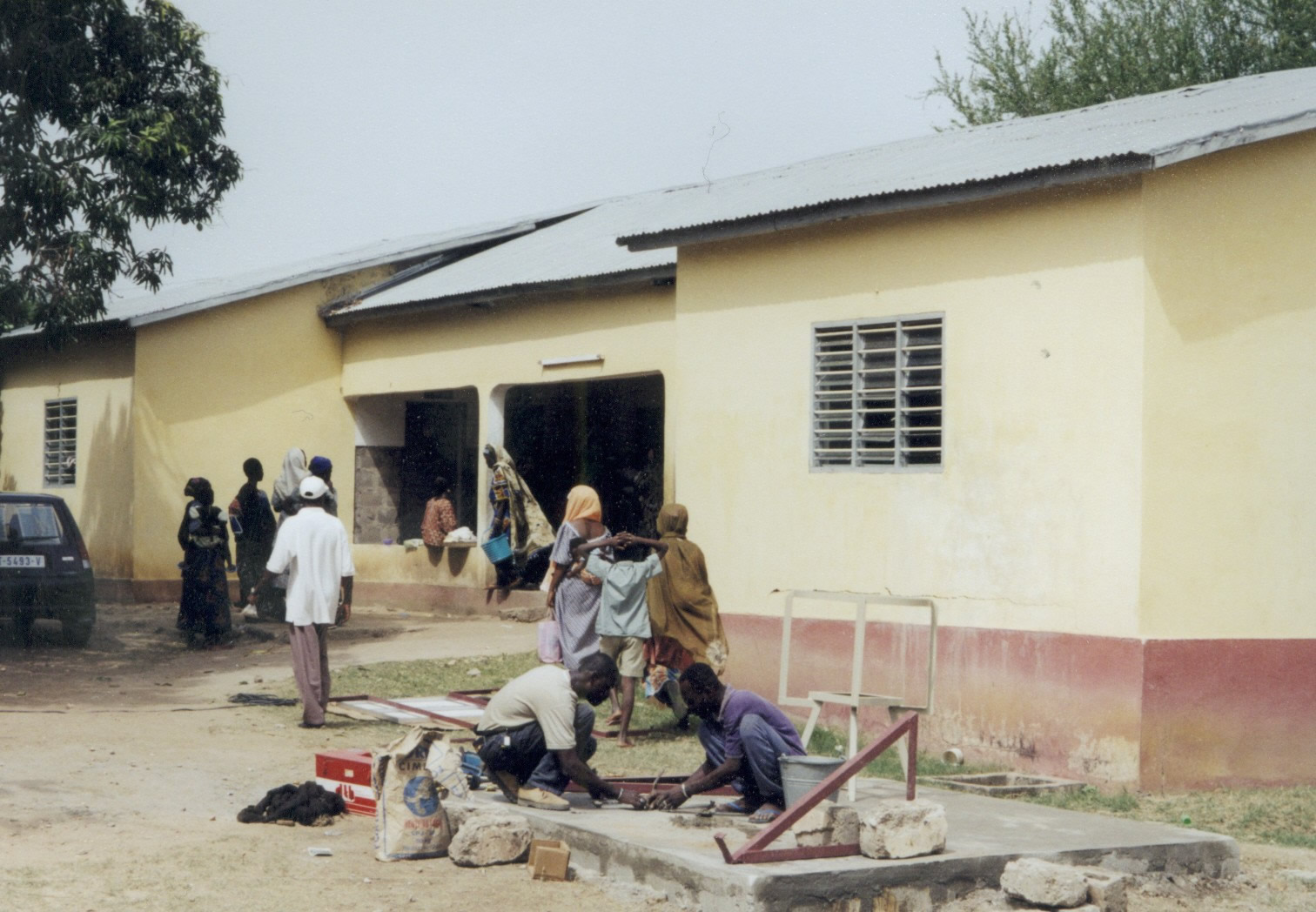

Villages hospital at Anié Togo: Project „Sonnenkollekte "
Flat glassed collector, type EURO C-18 from Wagner & Co. Surface 1x 2.34m2
Thermal reservoir UL95-150 with 1 x 150Litres capacity from CATAT industrial Engineering

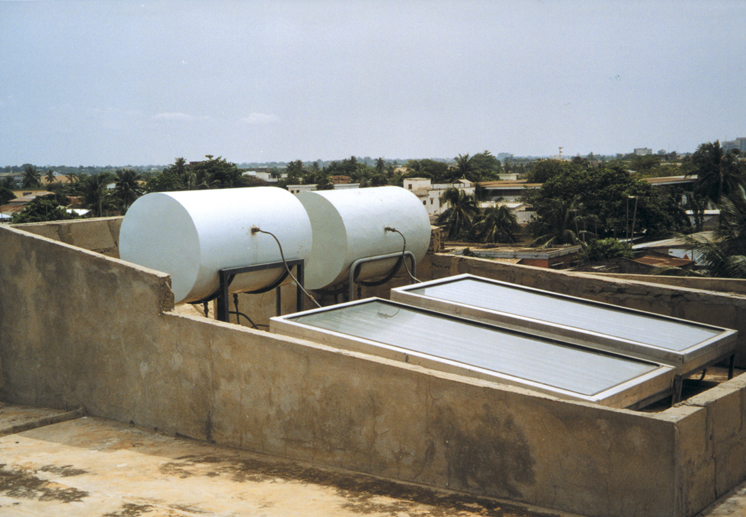

Clinic de l’Union - Lomé Togo : Sanitary use

Flat glassed collector, TINOX absorber, simple circulation, surface 2 x 2m2

Thermal reservoir UL95-150 with 2 x 150 Litres capacity

Clinic BIASA - Lomé Togo: Sanitary use
Flat glassed collector, TINOX Absorber, double circulation, surface 2 x 2.5m2,
Thermal reservoir UL95-150 with 2 x 150 Litres capacity

Village hospital Agou-Klonou (Togo) Project FED (European Development Fund)- Togo
DC system for lighting and refrigeration
PV power: 550Wp
Battery: 750Ah

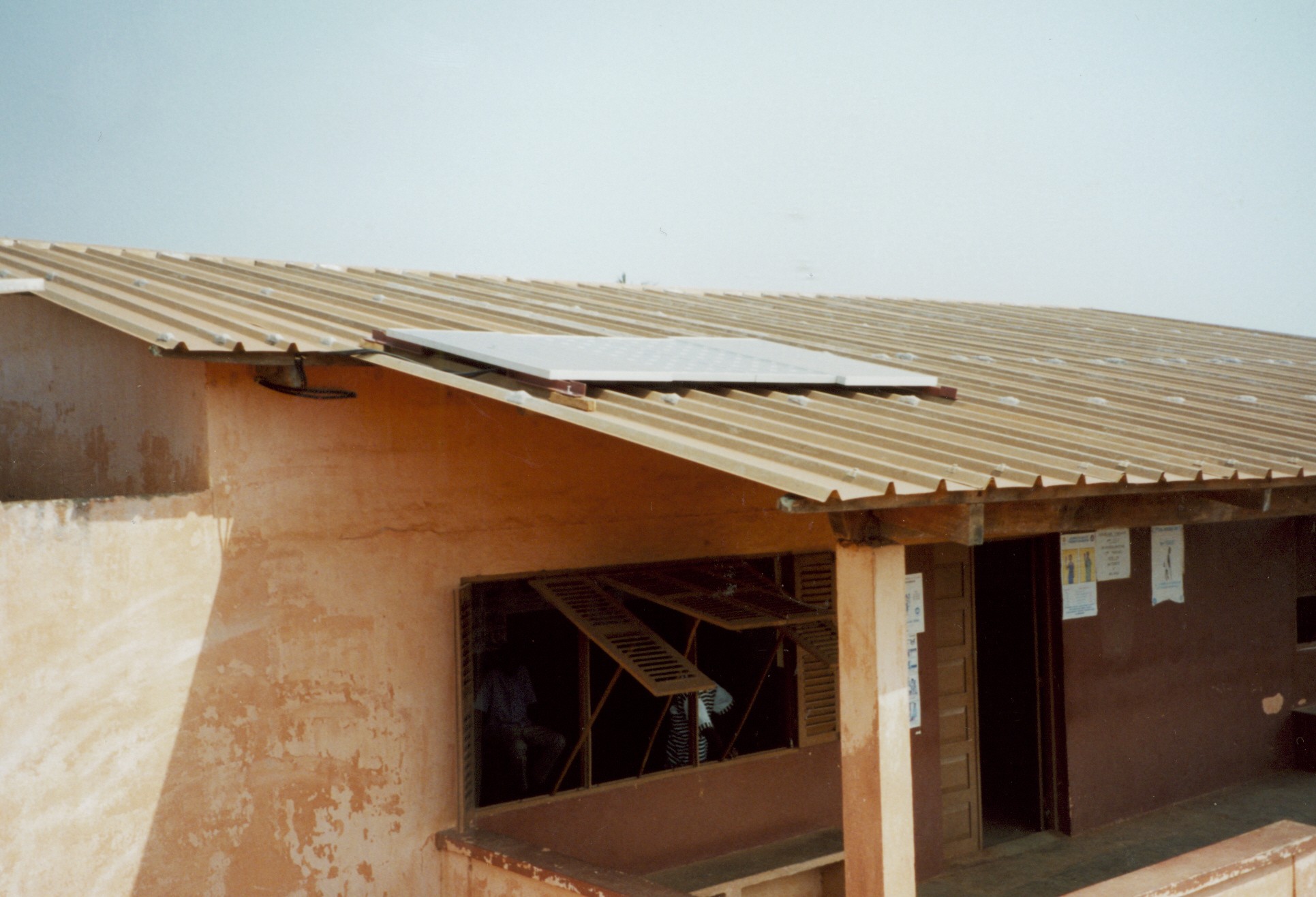

Village hospital at Aklakou (Togo), Project „Sonnenkollekte "
DC system for lighting and refrigeration
PV power: 460Wp
Battery: 430Ah

Village hospital at Kolokope (Togo), Project „Sonnenkollekte "
DC system for lighting and refrigeration
PV power: 350Wp
Battery: 310Ah

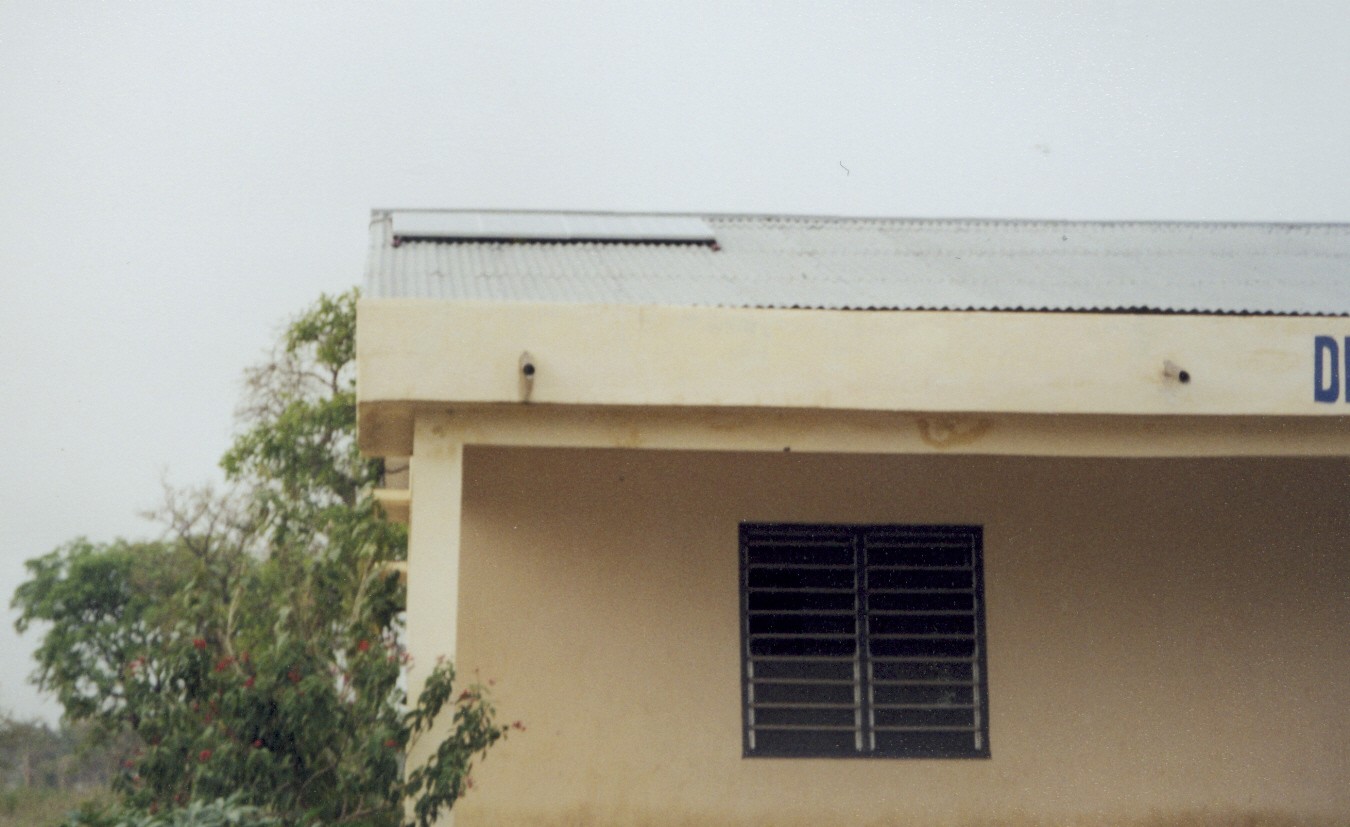

Village hospital at Awayo (Togo), Project „Sonnenkollekte "
DC system for lighting and refrigeration
PV power: 350Wp
Battery: 310Ah

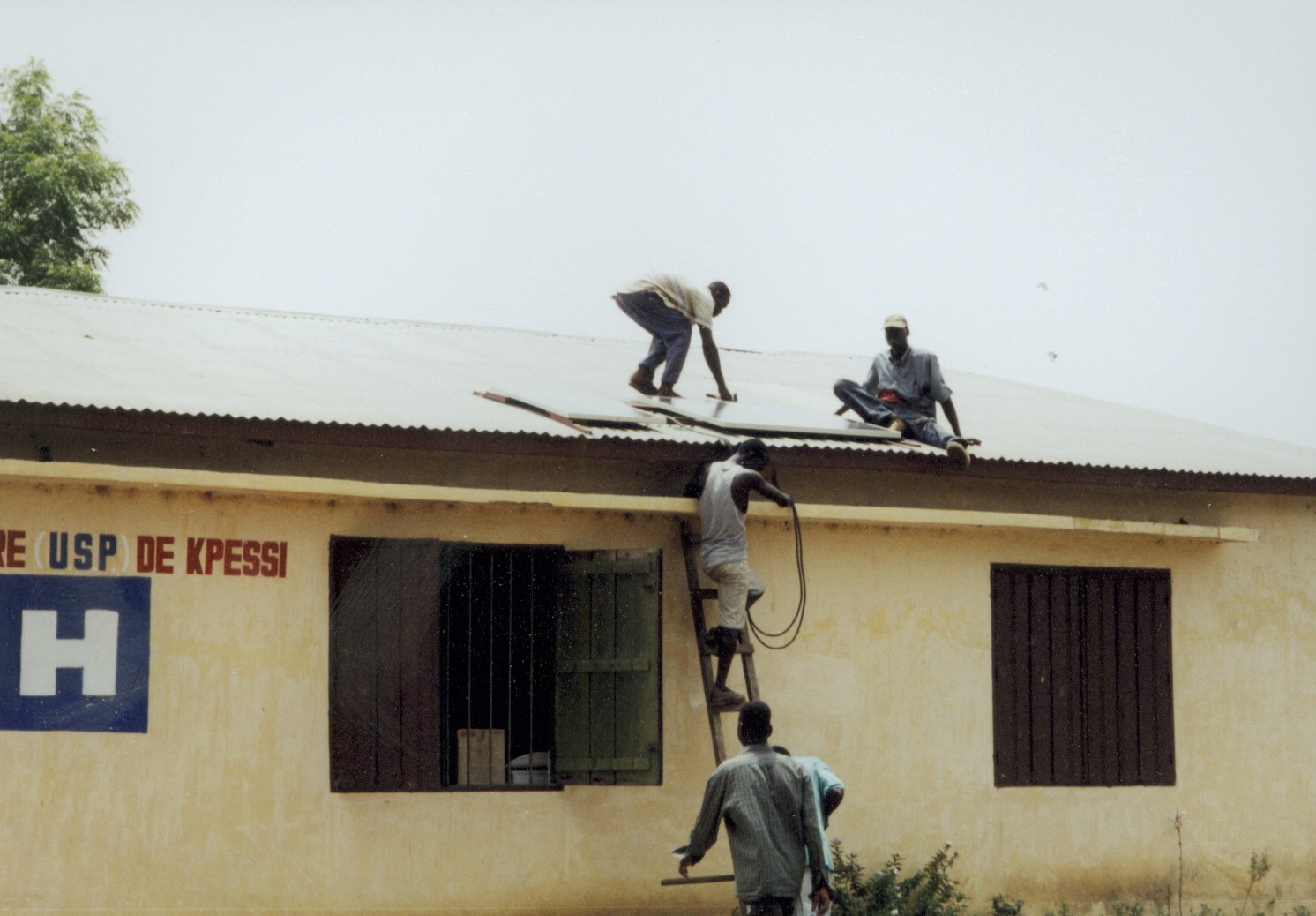

Village hospital Kpessi (Togo), Project „Sonnenkollekte "
DC system for lighting and refrigeration
PV power: 350Wp
Battery: 310Ah

Village hospital at Nyamassila (Togo), Project „Sonnenkollekte "
DC system for lighting and refrigeration
PV power: 350Wp
Battery: 310Ah

Village hospital at Anié (TOGO), Project „Sonnenkollekte "
Hybrid system: PV - electric generating set (already in place)
Principle: automatic inversion at the starting of the electric generating set
PV power: 150Wp (It is foreseen to increase the power of the generating PV)
Inverter: 400W
Battery: 310Ah
